Morphing Rig

Biped Rig, capable of changing gender, bodyshape, height and facial look.

The rig is intended to be a prototype of a morphing rig procedural rigging system. So the rig does not use any blendshapes/ cluster deformer to achieve the final effects. All the morphing features are keyable as well, which means the rig is able to morph on-fly.

The following images show the rig in the same pose but different body shapes.

Fat

Fat

Skinny

Skinny

Strong

Strong

Normal

Normal

The rigging process is very complicated.

Skin Weights

One of the most tricky parts is assigning skin weights. There are lots of overlapping morphing components. For example, some vertices needs to be able to scale with chest, stretch with spine, morph with belly, etc. Thus, tons of joints are placed to influence same vertices, which makes each joint only assigned with a very small weight value. So I have to paint the skin weights very carefully.

Another way is to assign skin weights by scripts. I used skinPercent command a lot when the deformation is very geometrical(be able to be expressed as an expression). Also, when two morphing components overlap, I sometimes use left body to paint for one skin weight and right body to do the other. In this way, I can see what skin weights are supposed to be. Then, I use python command to query for skin weights on right and left side to calculate the proper skin weight for those overlapped parts.

Morphing and Animation components

Another thing is to integrate morphing and animation components onto the same mesh. My first attempt is to use a blendshape deformer to add the morphing component directly to the base (animation) mesh. But it did not work. Then I have to work on the joints of the original skincluster deformer to make the final morphing effects. Therefore, the rig involves lots of careful design for transform node hierarchy and pivots positions.





Bully

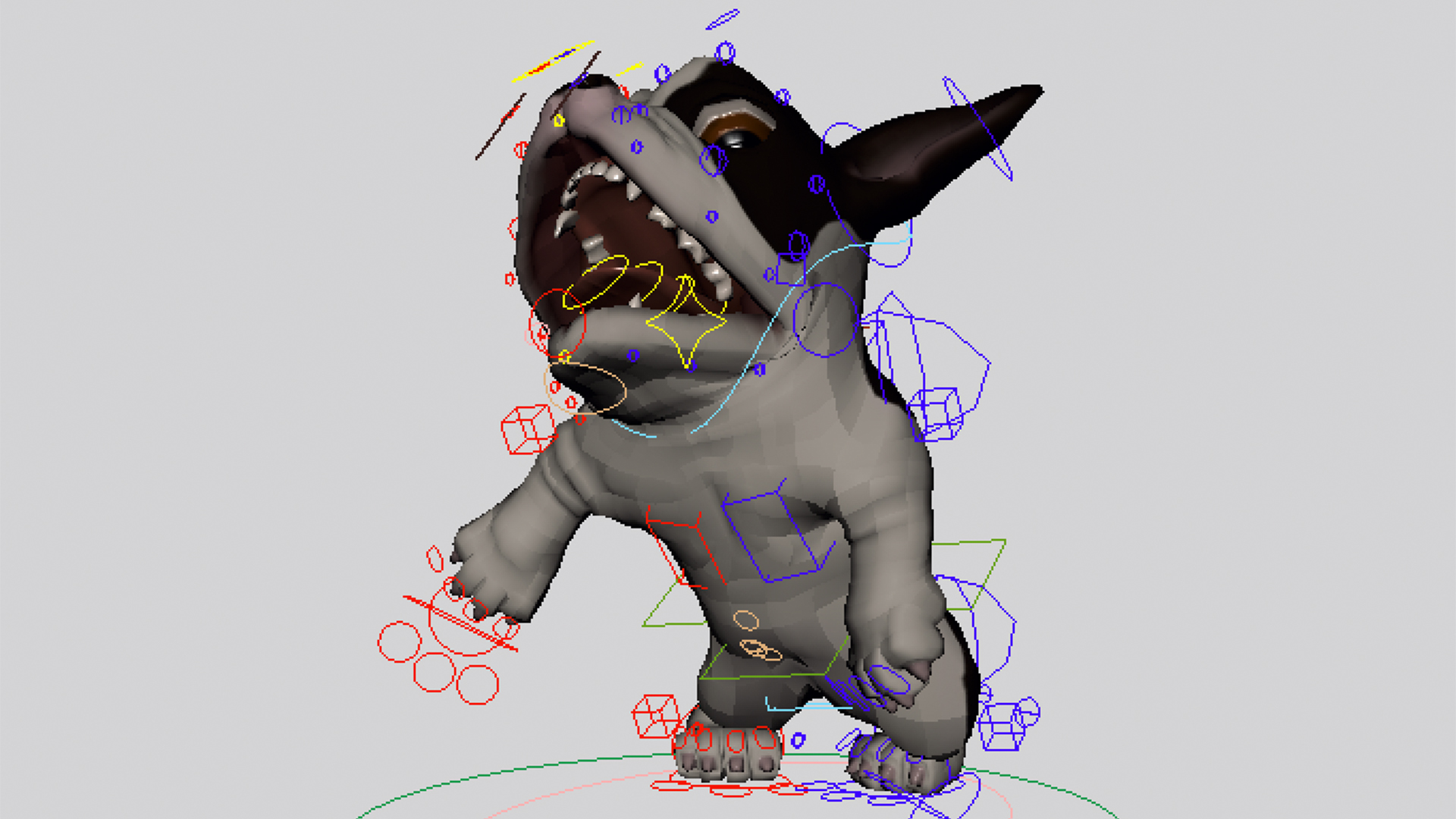

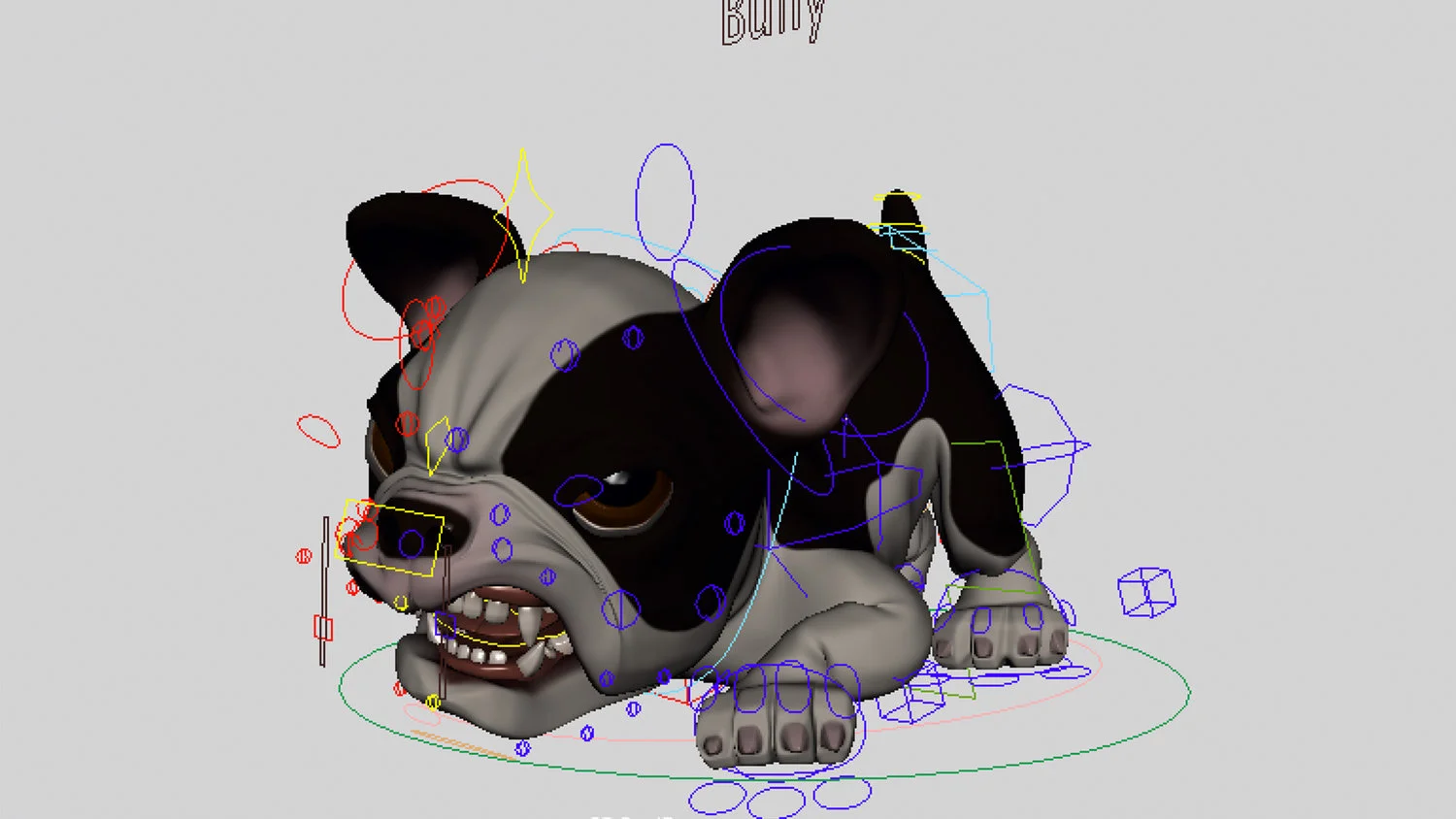

Quadruped Rig, with full facial controls and body controls.

Features:

Complete Snapper Style Facial Rigging System

Soft Following eyes

FK-IK mixed Ribbon Spine

Reverse Foot

Stretchy, FK-IK Legs

Automatic Space Matching Shelf

Ribbon Tail

Global Scale


download (1).png

volume-preserved spine


chewing jaw

snapper facial control





Moto Chopper

This rig is made within 5 days. The model was downloaded from TurboSquid.com by Marc Monz. Feel free to email me if you want the rig to do your own animation demo, etc.


Features:

Non-skincluster based rig

Complete control on all movable parts

Complete control on different levels of rotation axis

Modify model according to the  of rigging

download (1).jpeg




Kit

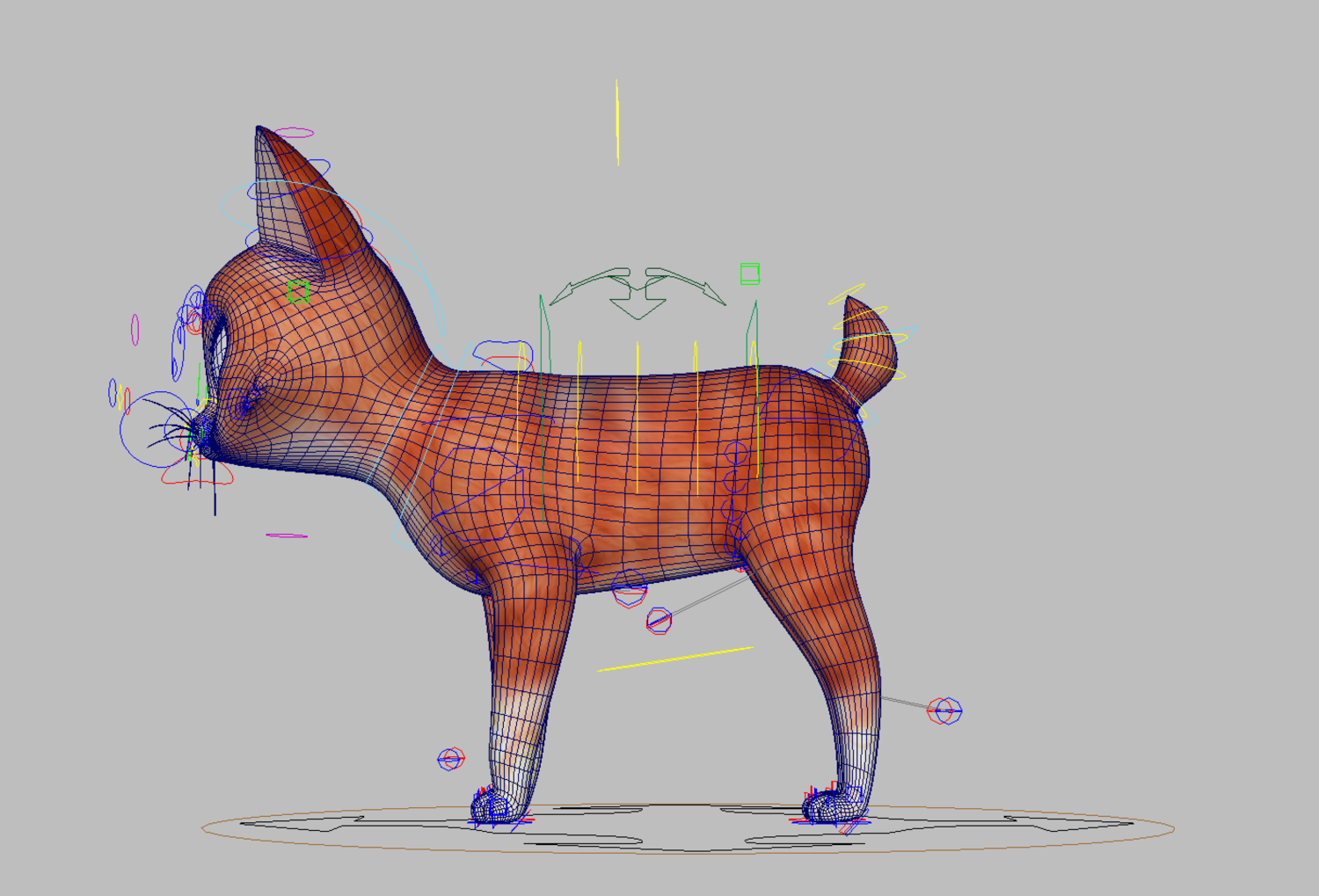

Quadruped Rig, with stretchy controls, full facial controls and body controls.

Features:

Complete Stretchy Facial Rigging System

Soft Following eyes

FK-IK mixed stretchy Ribbon Spine

Reverse Foot

Stretchy, FK-IK Legs that is able to make any pose





Ray

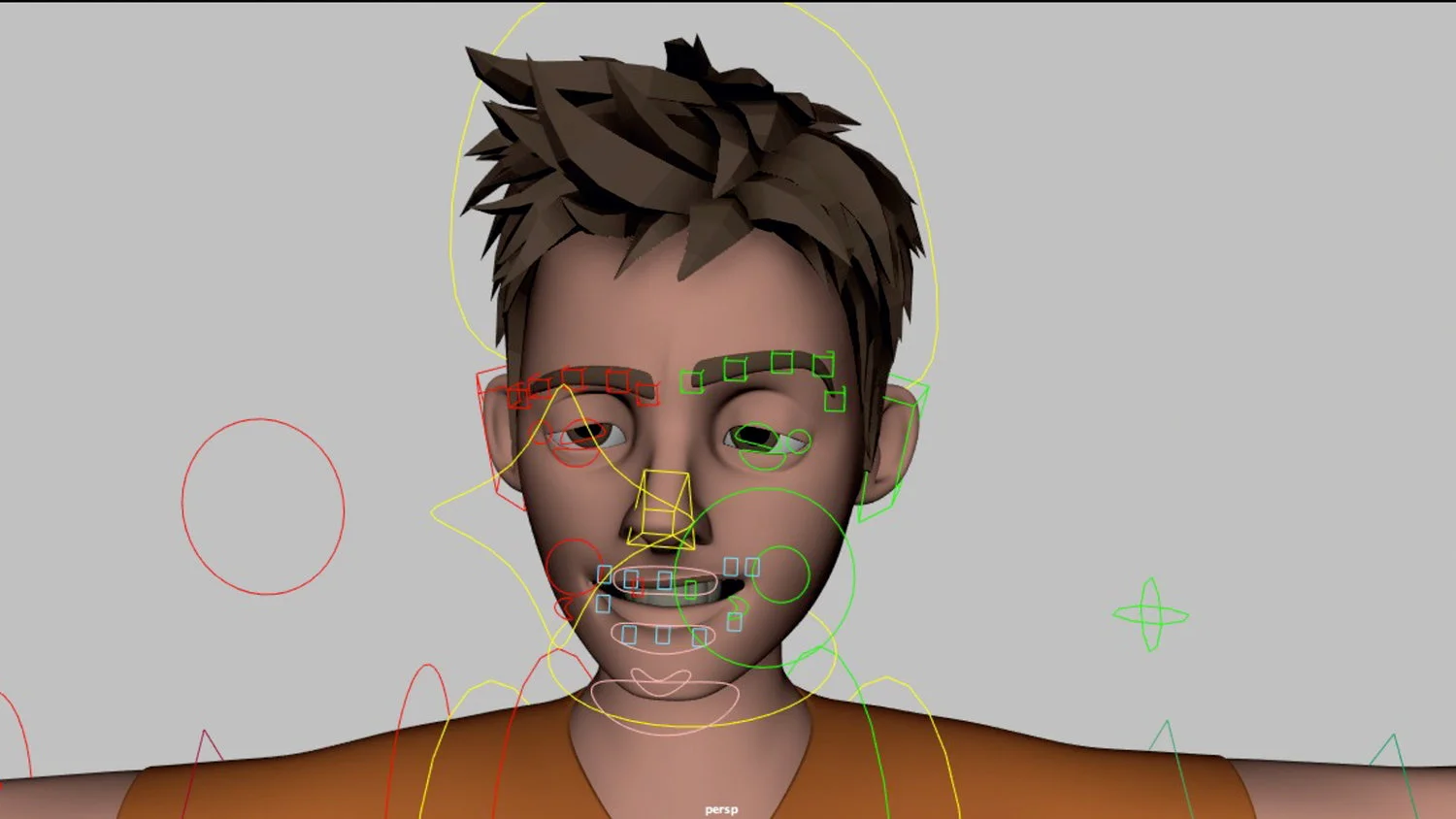

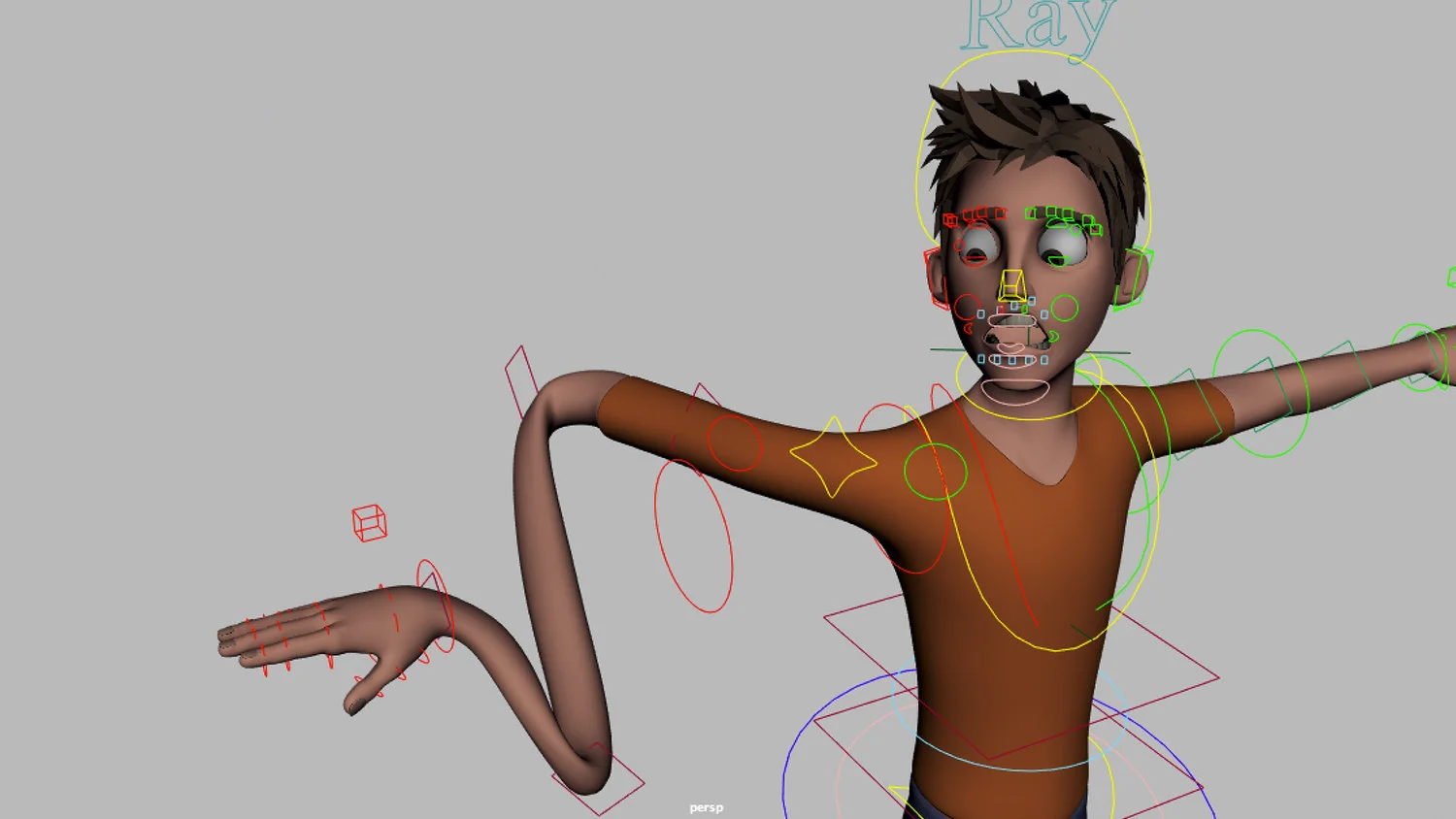

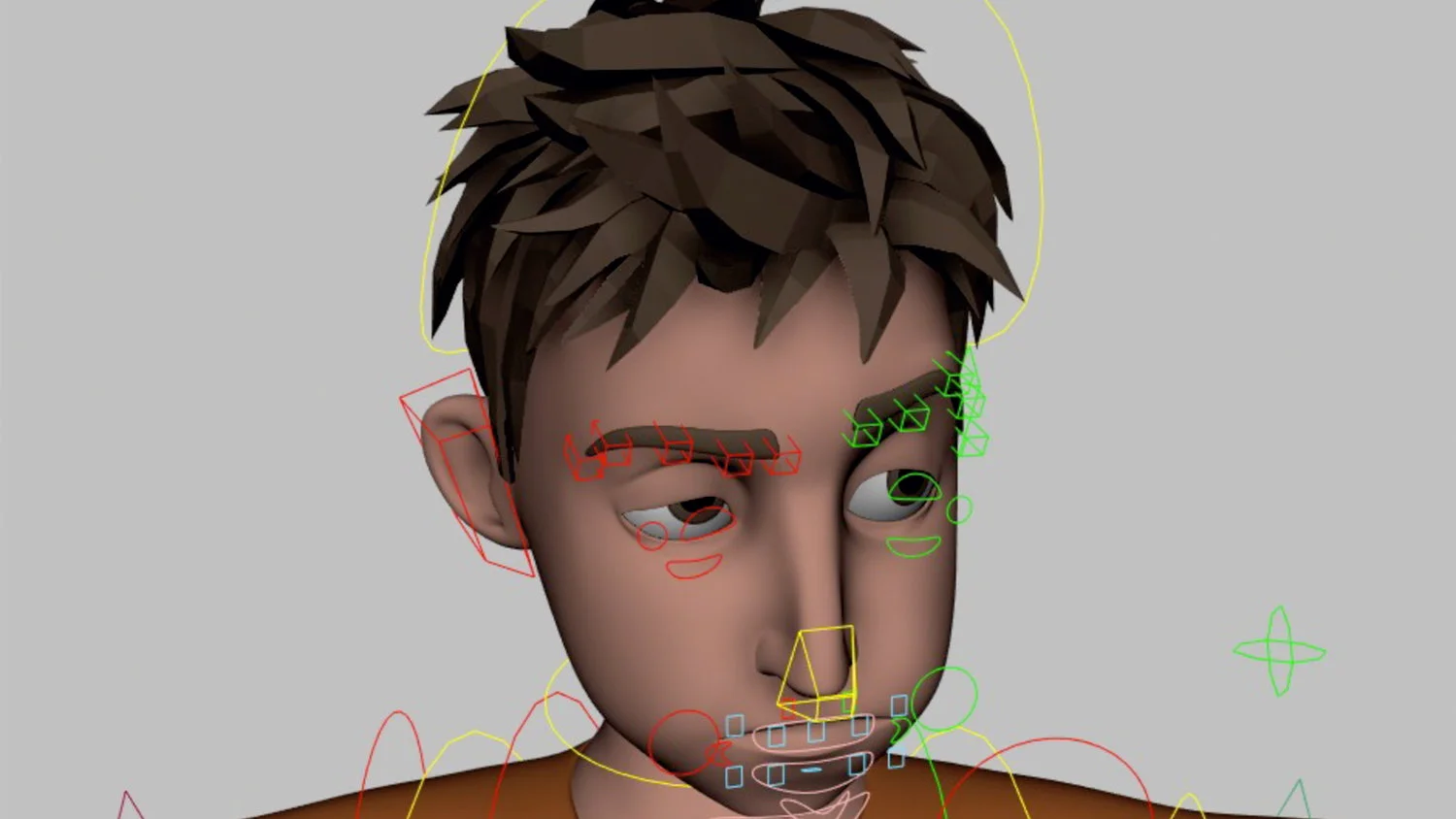

Biped Rig, with full facial controls and body controls.

Features:

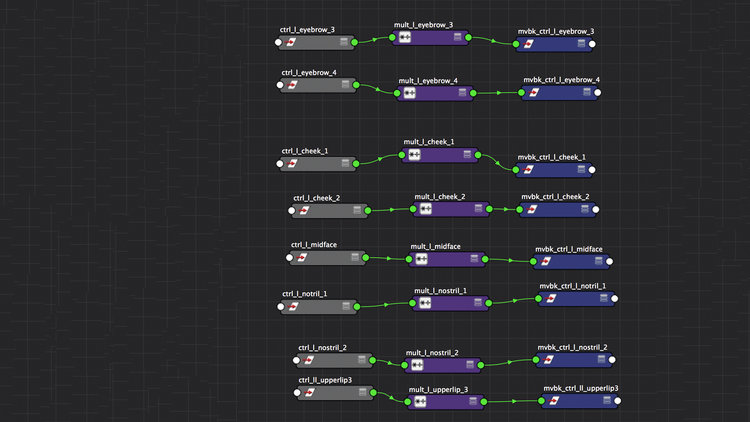

Complete Facial Rigging System

FK-IK switchable Ribbon Arm

Stretchy Arm

Built-in Hand Poses

Reverse Foot

FK-IK Switchable Stretchy Leg

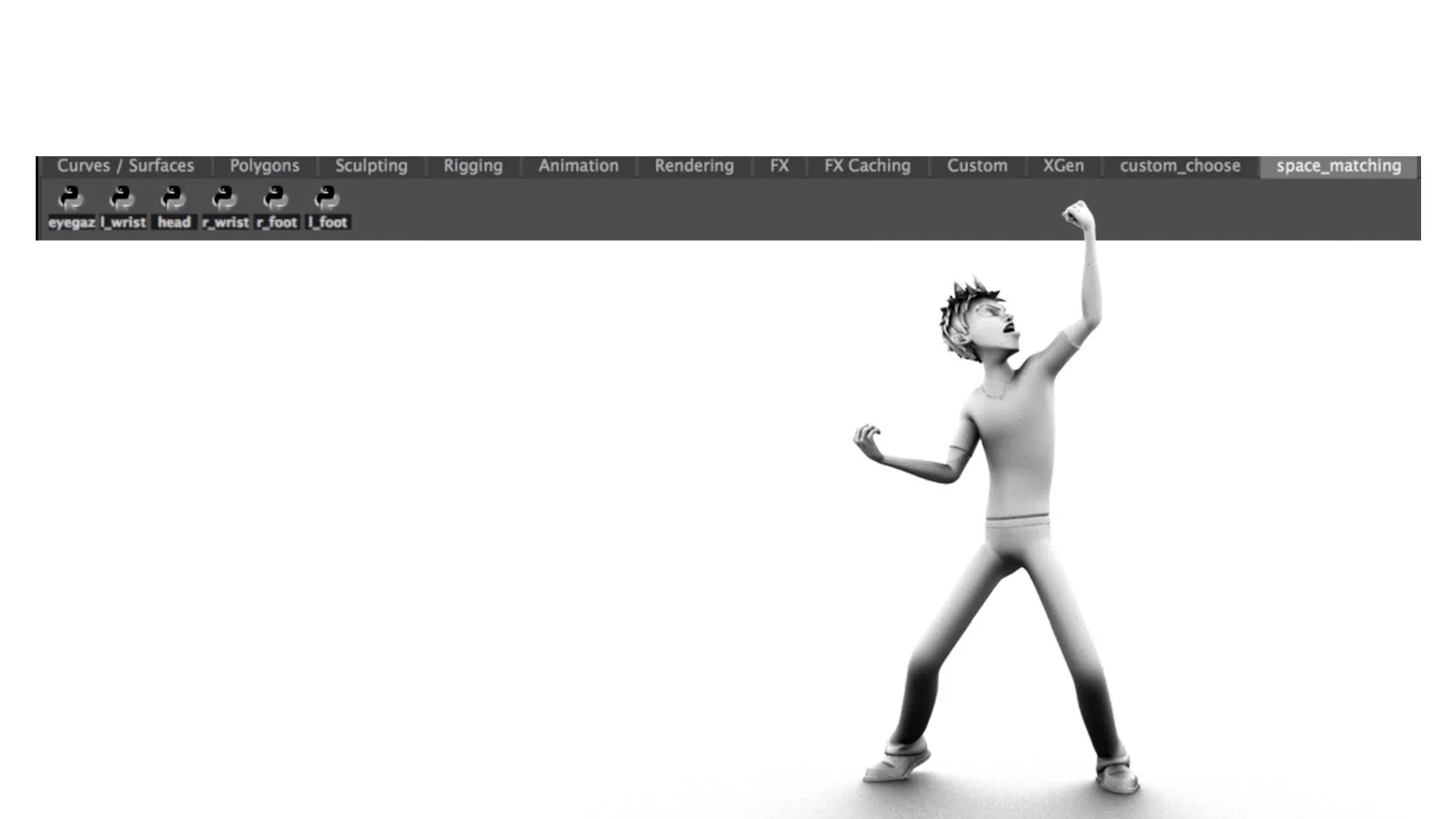

Automatic Space Matching Shelf

Robust IK-Spine System





Edward

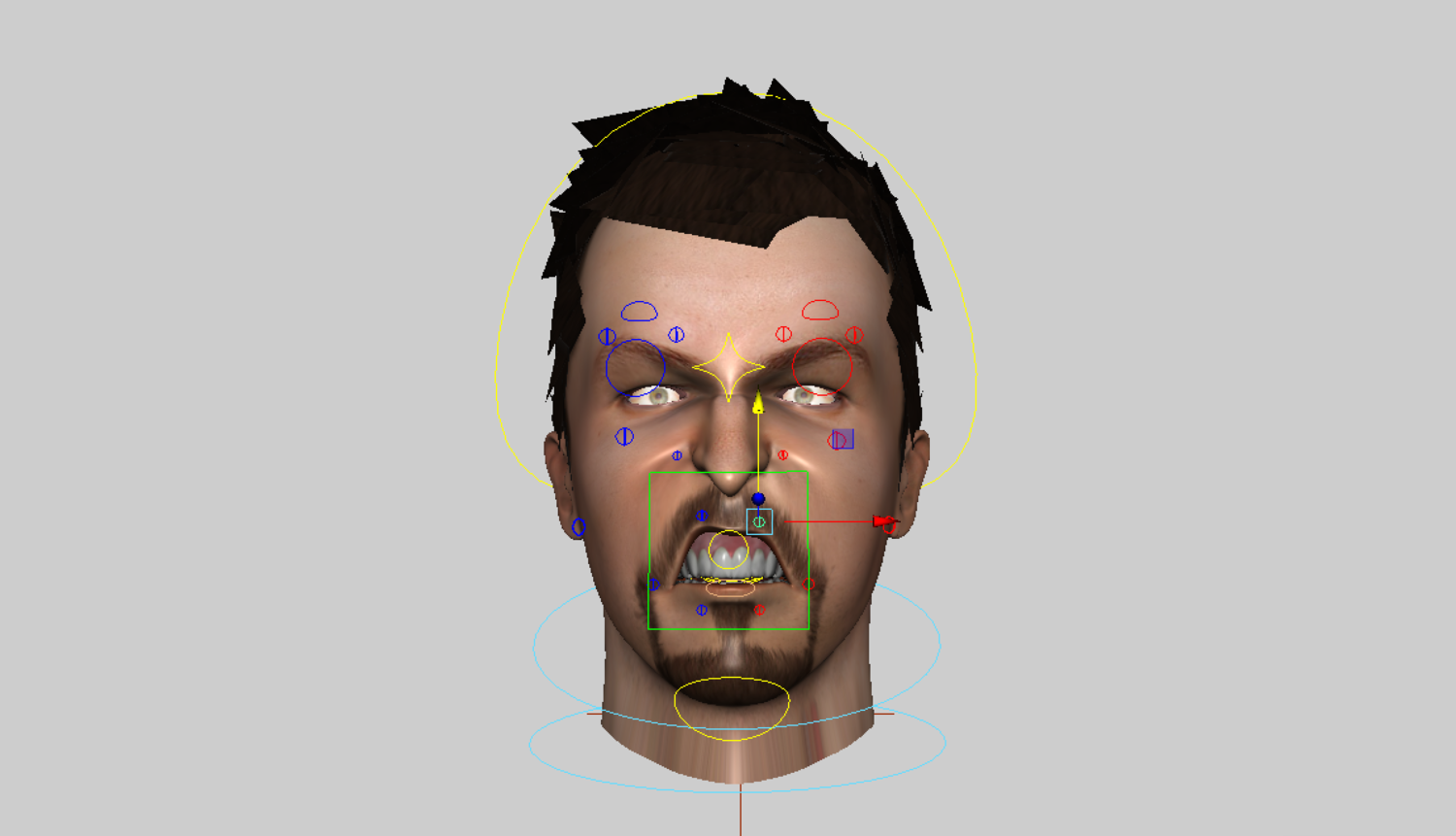

Realistic style face rig, Blendshape-based. Build all features based on FACS

Features:

Realistic style based on FACS and face muscles

Blendshapes to create facial expressions

Soft-following eyes

Movable Pivots

Seperated blendshapes





Shakie

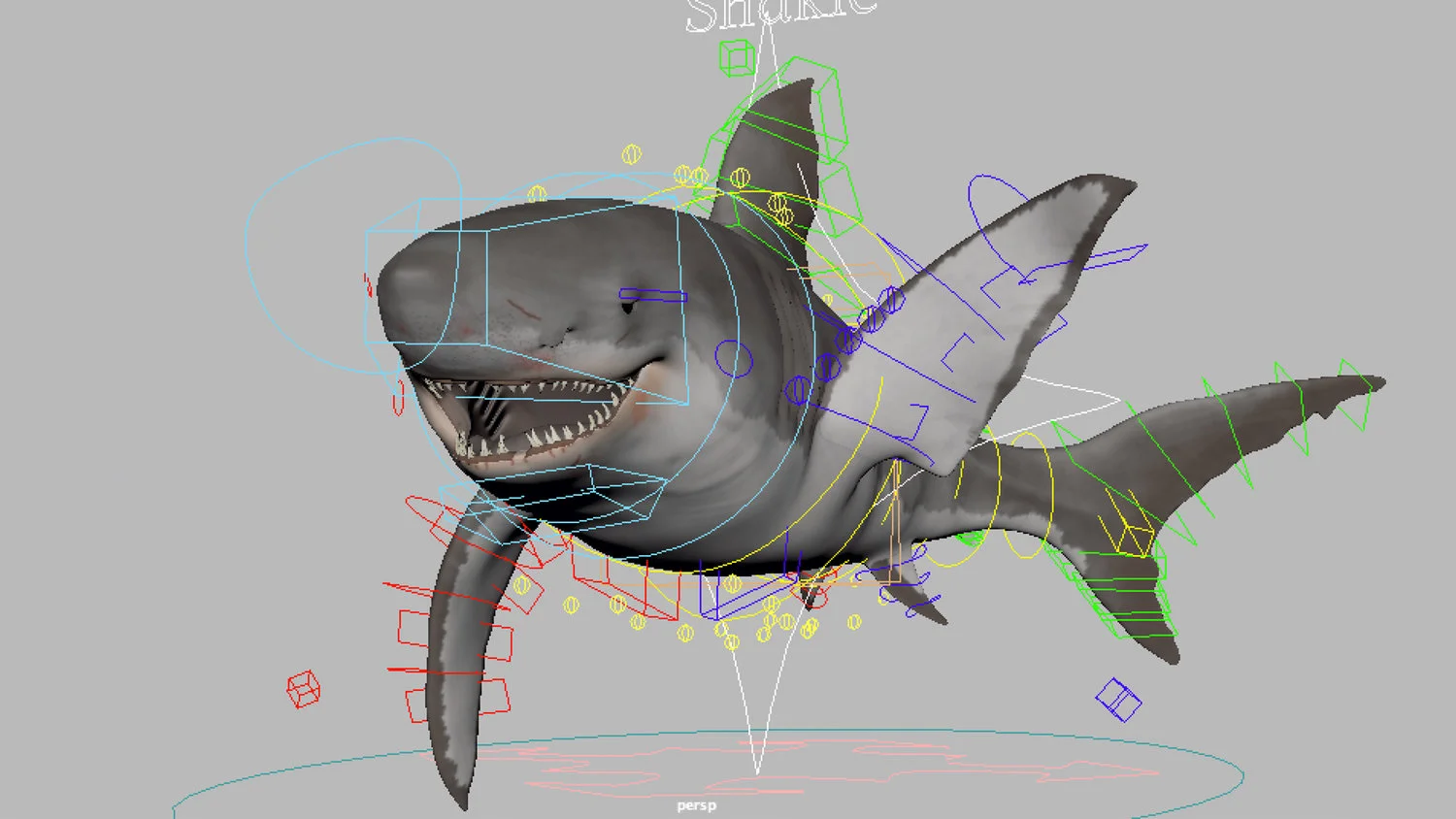

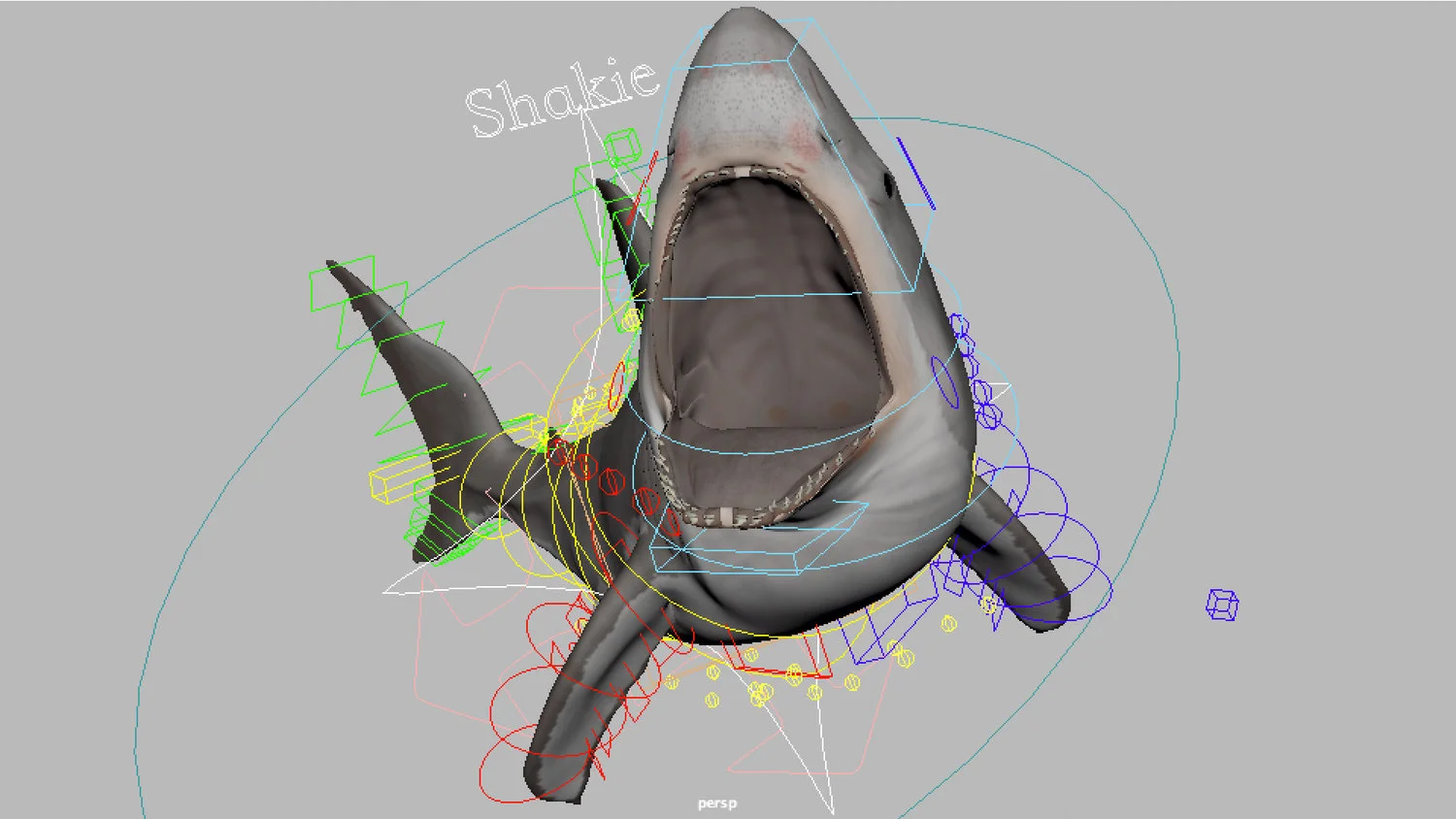

Shark Rig, rigged with different kinetic system and nice deformations.

Features:

Volume-preserved FK Upper body

IK-FK Switchable Lower body

Nice deformation for all body movement

FK-IK Pectoral

Built-in Poses for dorsal, pectorals, lower body

Fat Controls for the whole body

Robust and Realistic Facial Controls

pose_2 (1).jpg
